技术指标(Technical Specifications)
|
|

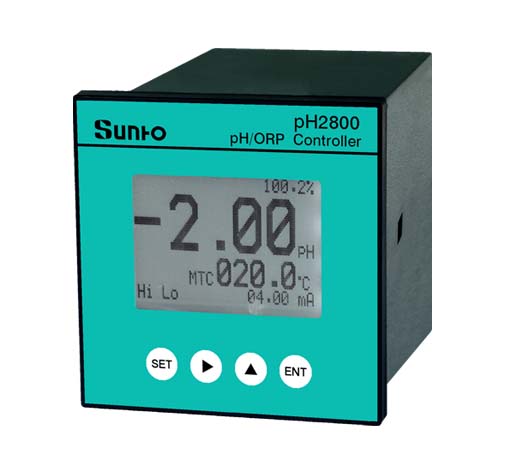

PH 2800/PH 221A |
|
测量范围(Range) |
pH ： -2.00～16.00pH ORP：-2000～＋2000mV |
|
准 确 度(Accuracy) |
pH : ±0.01 pH ORP：±1mV |
|
温度补偿(Temp.Comp.) |
pH：Reference to25 ℃,MTC/ATC |
|
介质温度(Oper. Temp.) |
-10℃～130℃ |
|
配套电极(Sensor) |
pH ：PH composite electrode； ORP：ORP Electrode |
|
校准方式(Calibration mode) |
pH ：4.00；6.86；9.18 Three-point calibration |
|
显示方式(Display) |
Large screen parameters LCD |
|
电流输出(Current output) |
Isolation of reversible or migration 4～20mA |
|
控制输出(Control output) |
ON/OFF High limit,low limit relay |
|
供电电源(Power) |
AC 110/220V±10% 50/60Hz |
|
工作条件(Working environment) |
Ambient temperature:0～50℃ Relative humidity:≤85% |
|
外形尺寸(Dimensions) |
96×96×130mm（High×width×depth） |
|
开孔尺寸(Hole size) |
92×92mm |
|
安装方式(Installation mode) |
Panel mounted (embedded) |
