技术指标(Technical Specifications)
|
|

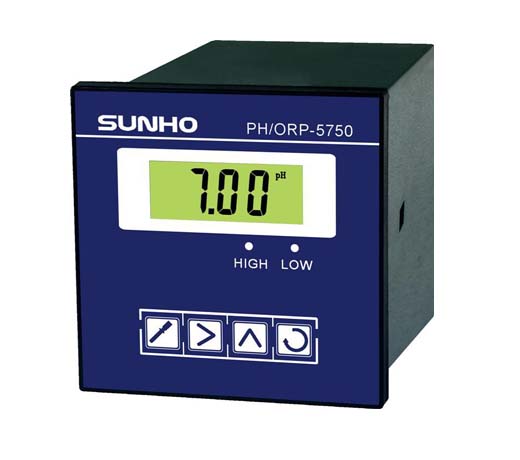

PH/ORP-5750 |
|
测量范围(Range) |
pH ： 0.00～14.00 pH ORP：－1000～＋1000mV |
|
准 确 度(Accuracy) |
pH : ±0.1 pH ORP：±2mV |
|
温度补偿(Temp.Comp.) |
pH：Reference to 25 ℃, manual temperature compensation |
|
介质温度(Oper. Temp.) |
0～100℃ |
|
配套电极(Sensor) |
pH ： Dual composite pH electrode ORP：ORP Electrode |
|
校准方式(Calibration mode) |
pH ：4.00；6.86；9.18 Three-point calibration |
|
显示方式(Display) |
3½ Bit LCD |
|
电流输出(Current output) |
isolation 4～20mA |
|
控制输出(Control output) |
ON/OFF High/low limit relay |
|
供电电源(Power) |
AC 110/220V±10% 50/60Hz |
|
工作条件(Working environment) |
Ambient temperature:0～50℃ Relative humidity:≤85% |
|
外形尺寸(Dimensions) |
96×96×130mm(H×W×D) |
|
开孔尺寸(Hole size) |
92×92mm(H×W) |
|
安装方式(Installation mode) |
Panel mounted(embedded) |
