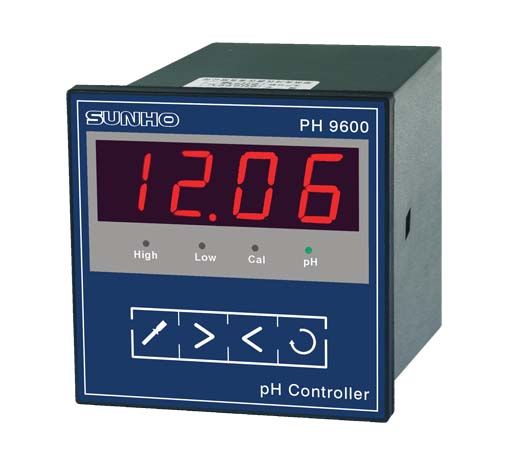

PH 9600

ORP 9600

测量范围(Range)

0.00～14.00  pH

－1000～＋1000mV

准 确 度(Accuracy)

±0.1 pH

±2mV

温度补偿(Temp.Comp.)

Reference to 25 ℃, manual temperature compensation

— — —

介质温度(Oper. Temp.)

0～100℃

— — —

配套电极(Sensor)

Dual composite electrode

ORP Electrode

校准方式(Calibration mode)

4.00；6.86；9.18 Three-point calibration

— — —

显示方式(Display)

4 bit LED

电流输出(Current output)

isolation 4～20mA

控制输出(Control output)

ON/OFF High/low limit relay

供电电源(Power)

AC 110/220V±10% 50/60Hz

工作条件(Working environment)

Ambient temperature:0～50℃ Relative humidity:≤85%

外形尺寸(Dimensions)

96×96×130mm(H×W×D)

开孔尺寸(Hole size)

92×92mm(H×W)

安装方式(Installation mode)

Panel mounted(embedded)
