技术指标(Technical Specifications)
|
|
ER-5220 |
ER-5430 |

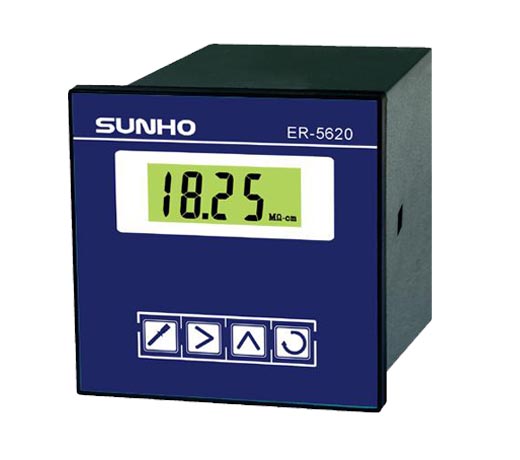

ER-5620 |
|
测量范围(Range) |
0～18.25MΩ·cm |
||
|
准 确 度(Accuracy) |
2.0%(FS) |
||
|
温度补偿(Temp.Comp.) |
The 25 ℃basis, automatic temperature compensation |
||
|
介质温度(Oper. Temp.) |
0～50℃ |
||
|
配套电极(Sensor) |
0.05cm-1 |
||
|
显示方式(Display) |
3½ Bit LCD |
||
|
电流输出(Current output) |
isolation 4～20mA |
— — — |
isolation 4～20mA |
|
控制输出(Control output) |
— — — |
ON/OFF High limit,low limit relay |
|
|
供电电源(Power) |
AC 110/220V±10% 50/60Hz |
||
|
工作条件(Working environment) |
Ambient temperature:0～50℃ Relative humidity:≤85% |
||
|
外形尺寸(Dimensions) |
96×96×130mm(H×W×D) |
||
|
开孔尺寸(Hole size) |
92×92mm(H×W) |
||
|
安装方式(Installation mode) |
Panel mounted(embedded) |
||
