技术指标(Technical Specifications)
|

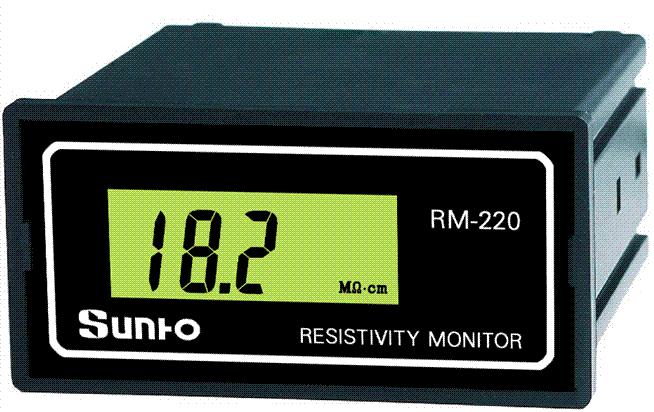

RM-220 |
|
|
测量范围(Range) |
0～18.2MΩ·cm |
|
准 确 度(Accuracy) |
2.0%(FS) |
|
温度补偿(Temp.Comp.) |
The 25 ℃basis, automatic temperature compensation |
|
介质温度(Oper. Temp.) |
0～50℃ |
|
配套电极(Sensor) |
0.05cm-1 |
|
显示方式(Display) |
2½ Bit LCD |
|
电流输出(Current output) |
Not isolated 4～20mA |
|
控制输出(Control output) |
— — — |
|
供电电源(Power) |
AC 110/220V±10% 50/60Hz |
|
工作条件(Working environment) |
Ambient temperature:0～50℃ Relative humidity:≤85% |
|
外形尺寸(Dimensions) |
48×96×100mm(H×W×D) |
|
开孔尺寸(Hole size) |
45×92mm(H×W) |
|
安装方式(Installation mode) |
Panel mounted(embedded) |
