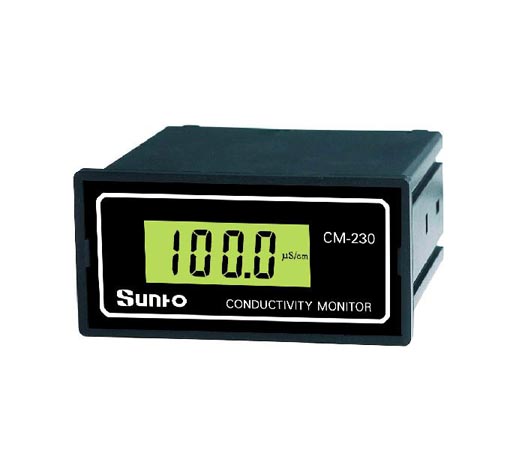

CM-230 |

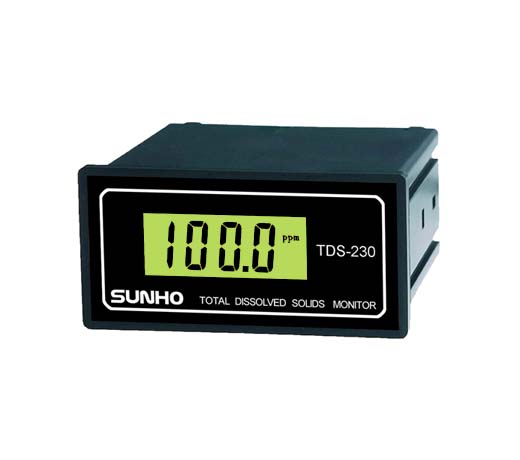

TDS-230 |
|
测量范围(Range) |
0～20/200/2000 μS/cm； 0～20 mS/cm |
0～20/200/2000 ppm |
|
准 确 度(Accuracy) |
1.5%(FS) |
|
|
温度补偿(Temp.Comp.) |
The 25 ℃basis, automatic temperature compensation |
|
|
介质温度(Oper. Temp.) |
0～50℃ |
|
|
配套电极(Sensor) |
1.0cm-1 |
|
|
显示方式(Display) |
3½ Bit LCD |
|
|
电流输出(Current output) |
— — — |
|
|
控制输出(Control output) |
— — — |
|
|
供电电源(Power) |
AC 110/220V±10% 50/60Hz |
|
|
工作条件(Working environment) |
Ambient temperature:0～50℃ Relative humidity:≤85% |
|
|
外形尺寸(Dimensions) |
48×96×100mm(H×W×D) |
|
|
开孔尺寸(Hole size) |
45×92mm(H×W) |
|
|
安装方式(Installation mode) |
Panel mounted(embedded) |
|
